Elemental Spirit Part 4: The Sisyphus Game

The Spridget turned out to be a difficult product to replace. We look at a diverse selection of proposals developed through the 1960s.

Image: MG Cheshire Owners Club

Far from perfect, and never very advanced in its design or engineering, replacing the Spridget became one of several long-running displacement activities within BMC and pre-Edwardes BLMC, although in a far lower league than The New Mini, and ‘The Little Engine That Could’ (replace the A Series). All turned out to be as pointless and unproductive as parlour games, with the participants’ abundant creativity never rewarded with a tangible prize.

When Leonard Lord and Donald Healey first imagined the low-budget car which would become the Austin-Healey Sprite, they probably envisaged a production life of possibly 3-4 years before technology and fashion left it behind. Within MG a ‘New Midget based on Sputnik FWD’, was registered in the experimental department register as EX 220, four months before Sputnik (better known as the ADO15 Mini) went on sale in August 1959. The project was given a proper Longbridge code, ADO34, despite the strong disproval of Alec Issigonis[a], and progressed for some time with competing design teams from Abingdon and Longbridge.

ADO34 prototype Image: Maximum Mini

ADO35, a Pininfarina-built – and possibly styled[b] – coupe was added to the project, along with a Healey derivative codenamed ADO36.

This slideshow requires JavaScript.

Some time in 1962, BMC management decreed that the future of the front wheel drive ADO34/35/36 should decided in an part-internal, part-external three-way competition with two other designs, all using Hydrolastic suspension. The competing hopefuls were a Healey proposal identified as WAEC (wheel at each corner) with a mid/rear mounted engine, and Abingdon’s EX229, a front engined / rear wheel drive car which was based on the ADO47 Midget Mark 1 introduced in 1961, but extensively adapted to accommodate the fluid interconnected rubber suspension.

Healey WAEC prototype Image: Maximum Mini

The striking and prescient Healey proposal, underpinned by two ADO16 front subframes, soon fell by the wayside owing to the imagined complexity of achieving an acceptable gearchange linkage with the rear /mid-mounted powertrain[c], and doubts about the acceptability of a mid-engined sports car in the USA. The front wheel drive prototypes did not find favour either, and BMC’s management decided that the steel-sprung Sprite and Midget were still sufficiently competitive to continue with an evolutionary programme of ad-hoc improvements to the car already in production.

Image: drive-my.com

In early 1964, work began on the EX234 ‘hydrolastic sports car’, which had evolved from the EX229 prototype and now took shape as an elegant Pininfarina styled two-seater with rear wheel drive and all independent interconnected suspension using the Hydrolastic displacers from the ADO17 BMC 1800. There is some dispute as to whether the car was intended to replace the Midget and MGB, or just the smaller car. The prototype used a 1275cc A series engine, and no development was ever carried out on a B series engine installation.

This slideshow requires JavaScript.

Of all the potential Spridget replacements, EX234 looked the most convincing, with the potential to become a scalable platform capable of replacing the Midget, MGB, and possibly even the Austin-Healey 3000.

Image: drive-my.com

Despite being admired by all who saw it and drove it, the project was abandoned by 1966 owing to the lack of financial and engineering resources to take it to production. The familiar Harriman-era excuse applied; why spend money on development and tooling when the customers are still buying plenty of the products we already make?

ADO21 Early Paul Hughes sketch. Image: AROnline

By 1969, the post-consolidation turmoil had stabilised sufficiently for design work to start on ADO21, a putative replacement for both the Midget and the Triumph Spitfire. Styling work was handled by Paul Hughes, working in Harris Mann’s team in Longbridge, while MG took on engineering responsibilities. The design proposal was a visually striking and well-proportioned fixed-head coupe with mid-mounted A and E series engines, and the potential to expand it to an MGB replacement with the 2.2 litre E6 engine was quickly recognised. The styling sketches and models show an attractive and up to the minute design, having more affinity with the newly-emerging junior Italian supercars than MG and Triumph’s staid and ageing roadsters.

ADO21 model. Image: AROnline

In complete contrast to the dramatic styling, the ADO21 engineering work suggests an under-resourced project, with development being centred on an MGB GT mule with an early 1748cc Maxi engine and its associated transaxle – including the notorious selector cables – installed behind a bulkhead fitted aft of the B-pillars.

ADO21 model. Image: AROnline

By mid-1970, the future sports car strategy had become a broader-based discussion with the British Leyland body corporate, and although a full sized ADO 21 model was presented to BLMC management in early 1970, the mid-engined proposal had already been effectively abandoned.

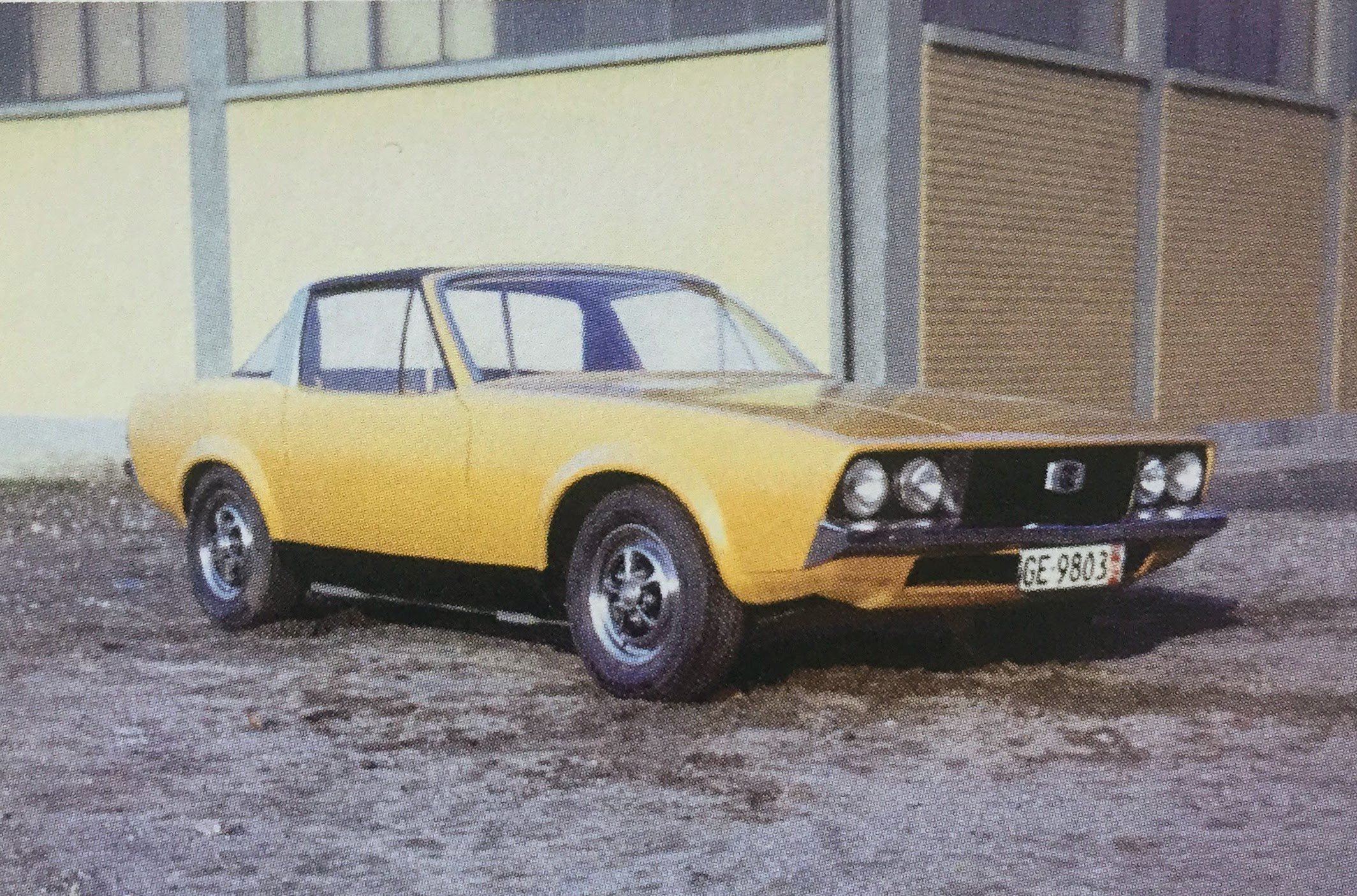

ADO70 prototype Image: All Car Index

Almost concurrently with ADO21, the front wheel drive Mini-based Midget idea had a final fling in the ADO70 Calypso, a neat targa-roofed two-seater also styled by Paul Hughes. The project, which seems to have no coherent relationship with anything else in BLMC’s product plan, was instigated in early 1970 by ex-Triumph BLMC Chief Engineer Harry Webster, with the direction “I want a fun car”.

It was built on the unmodified platform of a Mini 1275GT, driven to Turin in May 1970 by stylist Rob Owen, where Giovanni Michelotti’s services were engaged to construct a prototype from the Longbridge drawings. Between May and October 1970 Michelotti’s team created a hand-built, fully trimmed driveable[d] car.  Perhaps the most interesting Calypso fact is that it was intended to be built by Innocenti in Turin, and possibly sold under their name in Europe, with the MG branding reserved for exports to the USA.

Image: AROnline

More enlightening is the cost of the project: £15,000, mainly for 4-5 months of the Michelotti’s team’s design and construction work. At the time that sum would have bought three examples of British Leyland’s most expensive passenger vehicle, the Daimler DS420 Limousine, or fifteen Mini Cooper Ss. Styling and on-paper engineering were cheap, and external specialists like Michelotti provided spectacularly good value. Convincing one-off prototypes could be produced at modest cost, but tooling for large-scale production was vastly more expensive, and a product failing in the market after heavy investment would be a disaster. Remember that when contemplating all those intriguing what-might-have-beens

Between ADO70’s instigation and its realisation as a three-dimensional driveable entity, BLMC’s plans had found a different direction, and the Michelotti prototype was briefly inspected by management, who then decided that a front wheel drive sports car with the eleven year old Mini powertrain had no place in the business strategy.

By late 1970 development of MG’s mid-engined ADO21 ceased. Much earlier that year, at a top-tier meeting at Jaguar’s exhibition hall, the keel had been laid for the Corporate Sports Car, a shared conventionally engineered front engine, rear wheel drive platform which would, during the mid-1970s replace every non-Jaguar BLMC sports car. The company had no choice, as their hands were tied by impending US emissions and safety legislation, and the need to rationalise their fragmented production infrastructure.

The shape of things to come. Image: CAR

Thus ended the endless game. Happily many of the prototypes have survived and their history has been widely documented in detail well beyond the scope of this article. The Midget would not have a direct replacement, and its future would be decided by customer demand, and how much longer it could kept on the right side of the law in the USA, without the changes breaching the bounds of cost-effectiveness.

In a few year’s time, MG would surprise us when they showed how far they were prepared to go.

To be continued.

[a] Despite his opposition to the MG EX220 project on the grounds that a proper sports car had to be rear wheel driven, Issigonis, along with Jack Daniels and Riccardo Burzi, had already designed the ADO56 “MG Sports” proposal based on an elongated ADO15 platform.

Image: AROnline

The fixed-head coupe was shown as a 1:1 scale model, with a particularly incongruous MG radiator grille, as early as March 1959.

[b] Opinions on the authorship of the design vary, but it has some strong similarities to Pininfarina’s 1966 Peugeot 204 Coupe.

[c] The 1961 Deep Sanderson 301 used the Mini powertrain in a similar layout, as did the later 1966 Unipower GT and 1967 Cox GTM.

[d] The ADO70 prototype was driveable enough for Rob Owens to take it solo and unescorted by road from Turin to Birmingham, fortified by the prayers and hard work of the Innocenti management and staff who prepared it for the trans-Alpine journey.
